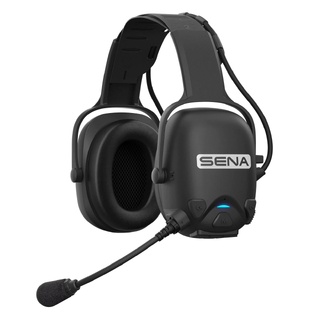

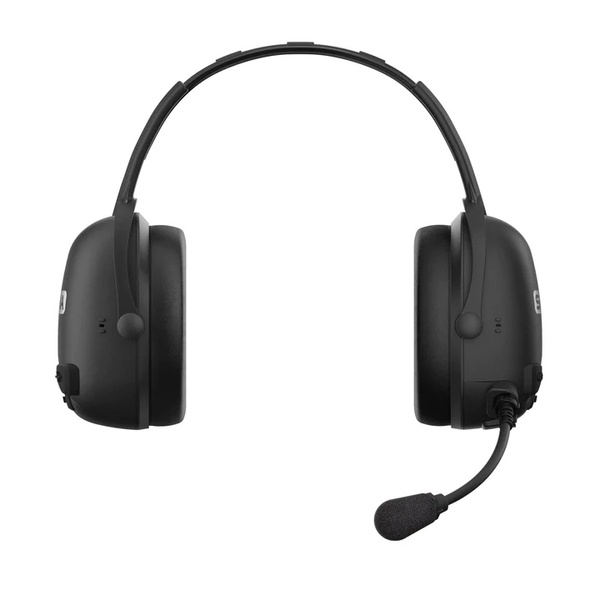

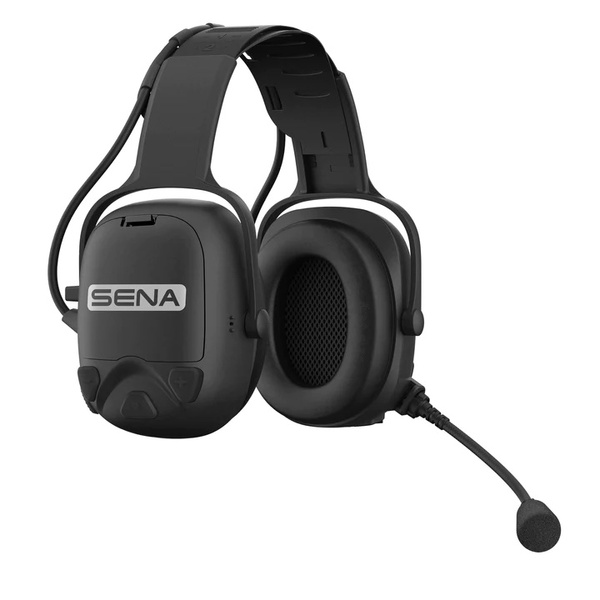

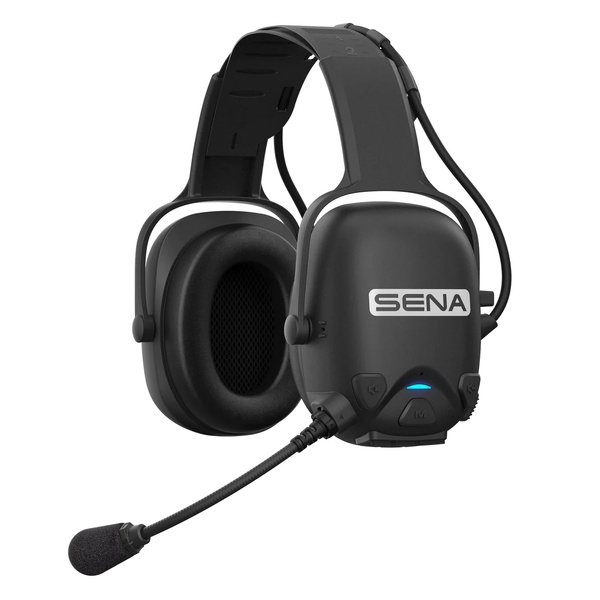

CAST Mesh Comms OVER THE HEAD Earmuff

Calculate Shipping

Built on Mesh-Only communication technology, Cast ensures seamless and reliable user connectivity. With an additional hour of talk time compared to previous models, it offers extended usage for uninterrupted conversations. Cast stands out with its durability and improved construction, providing a durable, long-lasting device. Moreover, its innovative design incorporates outer speakers that capture ambient noise, ensuring safety in high-traffic areas.

About MESH Technology
Mesh is designed to optimise and repair itself, constantly seeking the best connection and automatically establishing a new one when a device becomes disconnected.

Two different Mesh modes are available in the Cast system: Open Mesh and Group Mesh. Open Mesh allows many users to connect within an effective range of 1.1 km, providing a wide-reaching network. Group Mesh is designed for private sessions, accommodating up to 24 participants.

Clear Communication For Optimal Safety Maintaining open communication lines in worksites is crucial for safety. Cast addresses these concerns by utilizing full-duplex technology, enabling hands-free communication. This system empowers workers to communicate effortlessly and keep their hands free of distractions while working. The Cast headset offers hearing protection and effective communication capabilities in noisy and bustling worksites. Two styles are available: over-the-head earmuffs with a noise reduction rating of 28 dB and integrated hardhat design with a rating of 23 dB. The headset prioritizes safety and comfort, featuring a hands-free intercom system and a user-friendly layout with three buttons for easy control.

Long Talk Time to Accomodate Big Days The CAST's talk time when connected to Sena's proprietary Mesh network can reach up to 9h, powered by its supplied removeable lithium polymer battery. The battery is fully charged in only 2.5 hours using a USB type C port. Additional lithium polymer batteries are available for keeping on hand to swap in when charging is not convenient. Alternatively, the CAST can be powered by 3 x AAA batteries*.
*The talk time may vary from each battery manufacturer.

WHAT’S IN THE BOX
Over-the-Head Earmuffs
Hard Hat Mount Earmuffs
Headset main units (Hat adapters (type A) attached)
Hard Hat Adapters (Type B)
Microphone
Microphone Sponges
Rubber Rings for Microphone Sponge
USB Power & Data cable (USB Type C)
1 extra Rechargeable Battery
Dual Battery Charger

(CAST-01)

GENERAL
Dimensions:
Headset: 136 mm x 200 mm x 102 mm (5.3 in x 7.8 x 4.0 in)
Speaker Driver Unit: 32 mm (1.3 in) - thickness 7.1 mm (0.3 in)
Boom Microphone: length - 70 mm (2.7 in)
Weight:
Over-the-Head: 474 g (16.7 oz)
Hard Hat Mount: 492 g (17.3 oz)
Temperature:
Operating Temperature: -20°C ~ +60°C
Storage Temperature: 15°C ~ +60°C
Charging Temperature: 0˚C – 45˚C

BLUETOOTH
Bluetooth 4.0
Headset Profile (HSP)
Hands-Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)

NOISE REDUCTION RATING
Over-the-Head Earmuff Type:

NRR (ANSI S3.19-1974, US) - 28 dB
SNR (EN 352-1:2020, EU) - 34dB
SLC80 (AS/NZS 1270 Class 5, AUS/NZ) - 33 dB

INTERCOM
Working Distance:
Up to 1.1 km (0.7 miles) in open space* *Can extend up to 4.4 km (2.8 miles) between a minimum of 6 users

AUDIO
Noise Cancellation: Advanced Noise Control™
Codec: Built-in SBC Codec

BATTERY
Talk Time: Up to 9 hours (with included Lithium Polymer rechargeable battery, talk time may vary if using 3 x AAA batteries)
Charging Time: 2.5 hours
Quick Charge: 20 minutes of charging equals 3 hours Mesh Intercom
Type: Lithium Polymer Battery
Capacity: 1,100 mAh

MESH NETWORK
Mesh 2.0 Intercom™ Technology

CERTIFICATES
CE, FCC, IC, KC

SKU	CAST-01
Barcode #	885465018483
Brand	SENA
Shipping Weight	0.8270kg
Shipping Width	0.240m
Shipping Height	0.110m
Shipping Length	0.175m
Shipping Cubic	0.004620000m3
Unit Of Measure	ea
